Halogen Free Wiring Duct HVDRT-HF

Halogen Free Wiring Duct HVDRT-HF



Halogen Free Wiring Duct HVDRT-HF

Halogen Free Wiring Duct HVDRT-HF

 Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizes。
Certificates:UL  CE:EN50085 RoHS,REACH。Made of rigid Halogen free PCABS
Work temperature:-40 °c to 110 °c
UL94 Flammability Rating of V-0

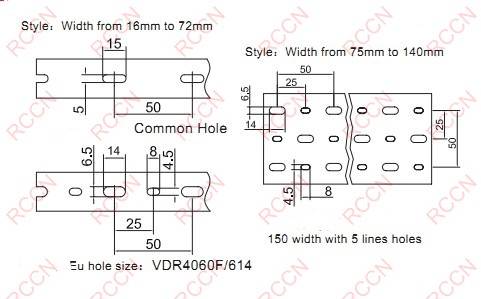

Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Special length come with MOQ request
Halogen Free Wiring Duct HVDRT-HF  DIN5510






Item No.



W*H



Q



P

pack

/M
Gray White Blue Black
HVDR1616T/HF HVDR1616TW/HF HVDR1616TE/HF HVDR1616TB/HF 16*16 5 8 300M
HVDR2516T/HF HVDR2516TW/HF HVDR2516TE/HF HVDR2516TB/HF 25*16 5 8 100M
HVDR1520T/HF HVDR1520TW/HF HVDR1520TE/HF HVDR1520TB/HF 15*20 5 8 260M
HVDR2020T/HF HVDR2020TW/HF HVDR2020TE/HF HVDR2020TB/HF 20*20 5 8 240M
HVDR4020T/HF HVDR4020TW/HF HVDR4020TE/HF HVDR4020TB/HF 40*20 5 8 140M
HVDR1525T/HF HVDR1525TW/HF HVDR1525TE/HF HVDR1525TB/HF 15*25 5 8 260M
*HVDR2025T/HF HVDR2025TW/HF HVDR2025TE/HF HVDR2025TB/HF 20*25 5 8 200M
*HVDR2525T/HF HVDR2525TW/HF HVDR2525TE/HF HVDR2525TB/HF 25*25 5 8 200M
*HVDR3025T/HF HVDR3025TW/HF HVDR3025TE/HF HVDR3025TB/HF 30*25 5 8 160M
HVDR4025T/HF HVDR4025TW/HF HVDR4025TE/HF HVDR4025TB/HF 40*25 5 8 100M
HVDR5025T/HF HVDR5025TW/HF HVDR5025TE/HF HVDR5025TB/HF 50*25 5 8 100M
HVDR1530T/HF HVDR1530TW/HF HVDR1530TE/HF HVDR1530TB/HF 15*30 5 8 180M
HVDR2030T/HF HVDR2030TW/HF HVDR2030TE/HF HVDR2030TB/HF 20*30 5 8 160M
HVDR2530T/HF HVDR2530TW/HF HVDR2530TE/HF HVDR2530TB/HF 25*30 5 8 160M
HVDR3030T/HF HVDR3030TW/HF HVDR3030TE/HF HVDR3030TB/HF 3030 5 8 140M
HVDR4030T/HF HVDR4030TW/HF HVDR4030TE/HF HVDR4030TB/HF 40*30 5 8 100M
HVDR5030T/HF HVDR5030TW/HF HVDR5030TE/HF HVDR5030TB/HF 50*30 5 8 80M
HVDR6030T/HF HVDR6030TW/HF HVDR6030TE/HF HVDR6030TB/HF 60*30 5 8 60M
HVDR2233T/HF HVDR2233TW/HF HVDR2233TE/HF HVDR2233TB/HF 22*33 5 8 160M
HVDR3333T/HF HVDR3333TW/HF HVDR3333TE/HF HVDR3333TB/HF 33*33 5 8 160M
HVDR2035T/HF HVDR2035TW/HF HVDR2035TE/HF HVDR2035TB/HF 20*35 5 8 100M
HVDR3535T/HF HVDR3535TW/HF HVDR3535TE/HF HVDR3535TB/HF 35*35 5 8 112M
HVDR5035T/HF HVDR5035TW/HF HVDR5035TE/HF HVDR5035TB/HF 50*35 5 8 88M
HVDR2040T/HF HVDR2040TW/HF HVDR2040TE/HF HVDR2040TB/HF 2040 5 8 110M
HVDR2540T/HF HVDR2540TW/HF HVDR2540TE/HF HVDR2540TB/HF 25*40 5 8 112M
HVDR3540T/HF HVDR3540TW/HF HVDR3540TE/HF HVDR3540TB/HF 35*40 5 8 100M
HVDR4040T/HF HVDR4040TW/HF HVDR4040TE/HF HVDR4040TB/HF 40*40 5 8 100M
HVDR6040T/HF HVDR6040TW/HF HVDR6040TE/HF HVDR6040TB/HF 60*40 5 8 68M
HVDR8040T/HF HVDR8040TW/HF HVDR8040TE/HF HVDR8040TB/HF 80*40 5 8 48M
HVDR10040T/HF HVDR10040TW/HF HVDR10040TE/HF HVDR10040TB/HF 100*40 5 8 32M
HVDR12040T/HF HVDR12040TW/HF HVDR12040TE/HF HVDR12040TB/HF 120*40 5 8
/
HVDR2545T/HF HVDR2545TW/HF HVDR2545TE/HF HVDR2545TB/HF 25*45 5 8 104M
HVDR3345T/HF HVDR3345TW/HF HVDR3345TE/HF HVDR3345TB/HF 33*45 5 8 108M
HVDR4545T/HF HVDR4545TW/HF HVDR4545TE/HF HVDR4545TB/HF 45*45 5 8 72M
HVDR6545T/HF HVDR6545TW/HF HVDR6545TE/HF HVDR6545TB/HF 65*45 5 8 56M
HVDR2050T/HF HVDR2050TW/HF HVDR2050TE/HF HVDR2050TB/HF 20*50 5 8 100M
HVDR2550T/HF HVDR2550TW/HF HVDR2550TE/HF HVDR2550TB/HF 25*50 5 8

100M
HVDR3050T/HF HVDR3050TW/HF HVDR3050TE/HF HVDR3050TB/HF 30*50 5 8 84M
HVDR3550T/HF HVDR3550TW/HF HVDR3550TE/HF HVDR3550TB/HF 35*50 5 8 80M
HVDR4050T/HF HVDR4050TW/HF HVDR4050TE/HF HVDR4050TB/HF 40*50 5 8 68M
HVDR4550T/HF HVDR4550TW/HF HVDR4550TE/HF HVDR4550TB/HF 45*50 5 8 60M
HVDR5050T/HF HVDR5050W/HF HVDR5050TE/HF HVDR5050TB/HF 50*50 5 8 60M
HVDR5550T/HF HVDR5550W/HF HVDR5550TE/HF HVDR5550TB/HF 50*50 5 8 48M
HVDR6050T/HF HVDR6050TW/HF HVDR6050TE/HF HVDR6050TB/HF 60*50 5 8 48M
HVDR7550T/HF HVDR7550TW/HF HVDR7550TE/HF HVDR7550TB/HF 75*50 5 8 40M
HVDR8050T/HF HVDR8050TW/HF HVDR8050TE/HF HVDR8050TB/HF 80*50 5 8 40M
HVDR10050T/HF HVDR10050TW/HF HVDR10050TE/HF HVDR10050TB/HF 100*50 5 8 26M
HVDR12555T/HF HVDR12555TW/HF HVDR12555TE/HF HVDR12555TB/HF 125*55 5 8 20M
*HVDR2060T/HF HVDR2060TW/HF HVDR2060TE/HF HVDR2060TB/HF 20*60 5 8 100M
HVDR2560T/HF HVDR2560TW/HF HVDR2560TE/HF HVDR2560TB/HF 25*60 5 8 100M
HVDR3060T/HF HVDR3060TW/HF HVDR3060TE/HF HVDR3060TB/HF 30*60 5 8 80M
HVDR3560T/HF HVDR3560TW/HF HVDR3560TE/HF HVDR3560TB/HF 35*60 5 8 78M
HVDR4060T/HF HVDR4060TW/HF HVDR4060TE/HF HVDR4060TB/HF 40*60 5 8 60M
HVDR4560T/HF HVDR4560TW/HF HVDR4560TE/HF HVDR4560TB/HF 45*60 5 8 30M
HVDR5060T/HF HVDR5060TW/HF HVDR5060TE/HF HVDR5060TB/HF 50*60 5 8 60M
HVDR6060T/HF HVDR6060TW/HF HVDR6060TE/HF HVDR6060TB/HF 60*60 5 8 48M
HVDR8060T/HF HVDR8060TW/HF HVDR8060TE/HF HVDR8060TB/HF 80*60 5 8 36M
HVDR10060T/HF HVDR10060TW/HF HVDR10060TE/HF HVDR10060TB/HF 100*60 5 8 28M
HVDR11060T/HF HVDR11060TW/HF HVDR11060TE/HF HVDR11060TB/HF 110*60 5 8 48M
*HVDR12060T/HF HVDR12060TW/HF HVDR12060TE/HF HVDR12060TB/HF 120*60 5 8 48M
HVDR15060T/HF HVDR15060TW/HF HVDR15060TE/HF HVDR15060TB/HF 150*60 5 8 /
HVDR2565T/HF HVDR2565TW/HF HVDR2565TE/HF HVDR2565TB/HF 25*65 5 8 96M
HVDR3365T/HF HVDR3365TW/HF HVDR3365TE/HF HVDR3365TB/HF 33*65 5 8 80M
HVDR4565T/HF HVDR4565TW/HF HVDR4565TE/HF HVDR4565TB/HF 45*65 5 8 52M
HVDR6565T/HF HVDR6565TW/HF HVDR6565TE/HF HVDR6565TB/HF 65*65 5 8 44M
HVDR7265T/HF HVDR7265TW/HF HVDR7265TE/HF HVDR7265TB/HF 72*65 5 8 42M
HVDR5075T/HF HVDR5075TW/HF HVDR5075TE/HF HVDR5075TB/HF 50*75 5 8 42M
HVDR7575T/HF HVDR7575TW/HF HVDR7575TE/HF HVDR7575TB/HF 75*75 5 8 40M
HVDR10075T/HF HVDR10075TW/HF HVDR10075TE/HF HVDR10075TB/HF 100*75 5 8 24M
HVDR2580T/HF HVDR2580TW/HF HVDR2580TE/HF HVDR2580TB/HF 25*80 5 8 72M
HVDR3080T/HF HVDR3080TW/HF HVDR3080TE/HF HVDR3080TB/HF 30*80 5 8 56M
HVDR3580T/HF HVDR3580TW/HF HVDR3580TE/HF HVDR3580TB/HF 35*80 5 8 56M
HVDR4080T/HF HVDR4080TW/HF HVDR4080TE/HF HVDR4080TB/HF 40*80 5 8 48M
HVDR4580T/HF HVDR4580TW/HF HVDR4580TE/HF HVDR4580TB/HF 45*80 5 8 40M
HVDR5080T/HF HVDR5080TW/HF HVDR5080TE/HF HVDR5080TB/HF 50*80 5 8 40M
HVDR5580T/HF HVDR5580TW/HF HVDR5580TE/HF HVDR5580TB/HF 55*80 5 8 32M
HVDR6080T/HF HVDR6080TW/HF HVDR6080TE/HF HVDR6080TB/HF 60*80 5 8 32M
HVDR8080T/HF HVDR8080TW/HF HVDR8080TE/HF HVDR8080TB/HF 80*80 5 8 24M
HVDR10080T/HF HVDR10080TW/HF HVDR10080TE/HF HVDR10080TB/HF 100*80 5 8 24M
HVDR12080T/HF HVDR12080TW/HF HVDR12080TE/HF HVDR12080TB/HF 120*80 5 8 16M
HVDR14080T/HF HVDR14080TW/HF HVDR14080TE/HF HVDR14080TB/HF 140*80 5 8 16M
*HVDR25100T/HF HVDR25100TW/HF HVDR25100TE/HF HVDR25100TB/HF 25*100 5 8 60M
HVDR33100T/HF HVDR33100TW/HF HVDR33100TE/HF HVDR33100TB/HF 33*100 5 8 44M
HVDR40100T/HF HVDR40100TW/HF HVDR40100TE/HF HVDR40100TB/HF 40*100 5 8 40M
HVDR50100T/HF HVDR50100TW/HF HVDR50100TE/HF HVDR50100TB/HF 50*100 5 8 40M
HVDR60100T/HF HVDR60100TW/HF HVDR60100TE/HF HVDR60100TB/HF 60*100 5 8 32M
HVDR70100T/HF HVDR70100TW/HF HVDR70100TE/HF HVDR70100TB/HF 70*100 5 8 24M
HVDR75100T/HF HVDR75100TW/HF HVDR75100TE/HF HVDR75100TB/HF 75*100 5 8 24M
HVDR80100T/HF HVDR80100TW/HF HVDR80100TE/HF HVDR80100TB/HF 80*100 5 8 24M
HVDR100100T/HF HVDR100100TW/HF HVDR100100TE/HF HVDR100100TB/HF 100*100 5 8 24M
HVDR120100T/HF HVDR120100TW/HF HVDR120100TE/HF HVDR120100TB/HF 120*100 5 8 16M
HVDR150100T/HF HVDR150100TW/HF HVDR150100TE/HF HVDR150100TB/HF 150*100 5 8
/
HVDR100130T/HF HVDR100130TW/HF HVDR100130TE/HF HVDR100130TB/HF 150*130 5 8
/
HVDR200100T/HF HVDR200100TW/HF HVDR200100TE/HF HVDR200100TB/HF 200*100 5 8 16M
HVDR200150T/HF HVDR200150TW/HF HVDR200150TE/HF HVDR200150TB/HF 200*150 5 8
/



Halogen Free Wiring Duct HVDRT-HF







Halogen Free Wiring Duct HVDRT-HF  Halogen Free Wiring Duct HVDRT-HF




RCCN  Din Rails







Halogen Free Wiring Duct HVDRT-HF        Halogen Free Wiring Duct HVDRT-HF


Halogen Free Wiring Duct HVDRT-HF

Halogen Free Wiring Duct HVDRT-HF



Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M
